I changed out the first entry door for my mobile home on a Saturday afternoon. Sure that it would be finished within an hour. After four hours, coated in sealant and lacking one tube of foam insulation. I finally realized how important accurate rough opening measurements were. Mobile home 32×74 inch inswing doors may appear straightforward. But nailing down the proper fit is what turns a hassle-free Saturday project into a difficult one. This article covers everything from the correct jamb size to quality manufacturers for your next door.
Why Mobile Home Exterior Doors 32×74 Inswing Are the Standard Fit
Different dimensions are used for manufactured houses compared to site-built structures, and it causes some problems for many buyers new to the process. In general, door height is 80 inches in regular houses, but in mobile homes, where an exterior door 32×74 inches is used, the height of the door is lower, due to factory wall height.
Understanding Rough Opening and Jamb Depth
Every mobile home door starts from the rough opening, which is basically the actual opening made in the wall after removal of the old door. Therefore, when measuring an opening of 32-1/2 inches by 76-1/2 inches, you can get the door that will perfectly suit you, 32×74 doors. The jamb depth is as important as the height and the width of the door because it should match exactly the thickness of your walls. Most of the manufactured homes have a jamb depth of 4-9/16 inches, although in some cases it differs according to the time of manufacture and interior coverings.
Removal of interior trim allows one to measure the slab of the door along with the side jamb and then add about half an inch to get the right measurements. Not taking such precaution leads precisely to the situations where homeowners are left with the proud doorframe or with a recessed frame. I know neighbors who have ordered two times just because no one measured the jamb depth before ordering the frame. Taking ten minutes with measuring tape can be really rewarding in this case.
Left-Hand vs Right-Hand Inswing Configuration
The hinge side identification is confusing for everybody when done for the first time. The key is to stand outside facing the door and determine if hinges are on your right side while the door swings inward, in which case it is a right-hand inswing door. If, however, hinges are on the left side, then you should buy a left-hand door. In case of any mistake, you will have to return the whole order, and that too at your own cost.
Choosing the Right Material and Brand
Material choice affects durability, maintenance, and how well your new door handles seasonal weather. Before comparing specific brands, it helps to understand what each material actually offers homeowners shopping for mobile home exterior doors 32×74 inswing replacements long-term.
Fiberglass, Steel, and Solid Wood Options
The fiberglass door withstands the process of dents, decay, and corrosion much better compared to the conventional wooden doors. The polystyrene foam core in such doors ensures energy efficiency, while the flush-glazed glass door panel allows for some natural lighting inside the room. The steel door has superior security characteristics due to the reinforced frame and hinges, though the scratches may reveal the actual metal surface underneath its coating. There is aluminum that can also boast its benefits: it is very light and corrosion-resistant in humid or coastal conditions. The solid wood doors, although demanding much maintenance, can be chosen by those who prefer the classical look.
Trusted Brands: Therma-Tru, Masonite, RELIABILT, and Caliber
Therma-Tru’s Shaker and Emerson lines dominate the fiberglass category, often sold unfinished and ready to paint. Masonite offers primed steel doors with six-panel designs that pair strength with classic style. RELIABILT provides budget-friendly steel options through Lowe’s, while Style Crest’s Caliber Mobile Home Door line focuses specifically on manufactured housing needs. Each brand handles prehung construction slightly differently, so comparing warranty terms matters before you commit.
Installation Essentials for a Proper Fit
Even a premium door underperforms without correct installation technique. These fundamentals determine whether mobile home exterior doors 32×74 inswing units function smoothly for years or fight you every single day.

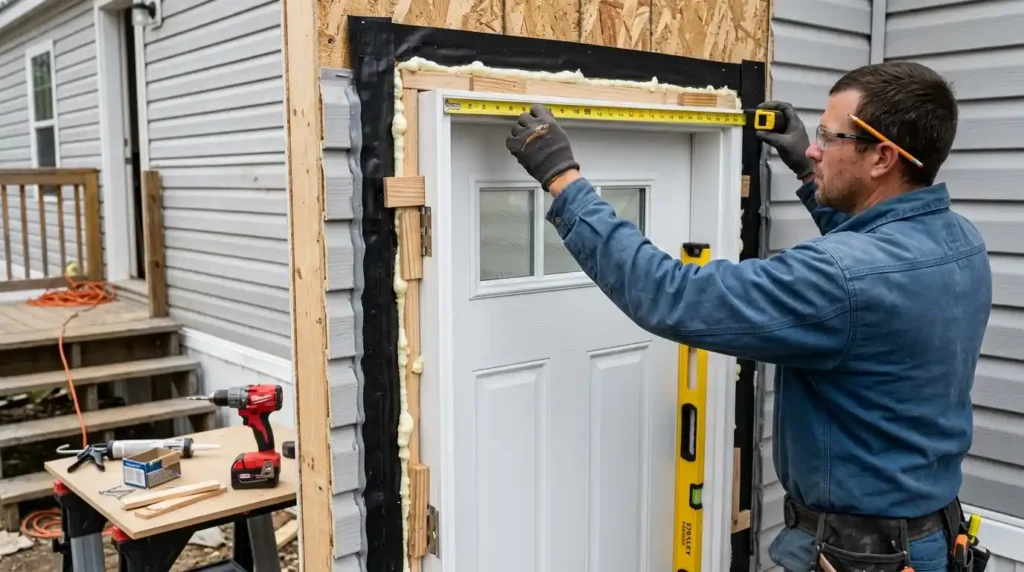

Measuring the Rough Opening Correctly
Measure width at three points, then record the smallest number you find. Height gets measured on both sides, since older mobile homes rarely stay perfectly level. Diagonal measurements confirm the opening remains square before you order anything. Write every number down as you go, since relying on memory often leads to mismatched figures once you’re actually placing an order online.
Sealing, Shimming, and Fastening the Frame
Seal the area around the sill so that water will not wick under the frame later on. Corrosion-proof hardware must go through the structural frame at least an inch to achieve good anchorage. Shimming takes care of small spaces, but the builder must never shim at the header because deflection at the header will cause load transfer to the door. Do not stuff the insulation around the frame either, as this will warp the jambs and bind the door.
Style, Hardware, and Curb Appeal Upgrades
Function is important, but style cannot be ignored. With the right finish, you turn an item purchased for purely functional reasons into something that enhances your curb appeal.
Craftsman Panels, Windows, and Finishes
Doors that have craftsman design look fantastic when paired with lap siding made of vinyl or wood. Strong paint color, such as red or dark blue, looks great in combination with other elements to make the entry way stand out. Window panes with the design of nine lite and cottage style will be unique but will provide privacy and security.
Hardware, Locksets, and Storm Door Pairings
A matte black or oil rubbed bronze hardware will go well with Craftsman style. Combining your front door with a retractable storm door allows for better ventilation while still protecting you from the elements. It’s important to remember that not all storm doors fit all brands, so find one that fits yours.
Where to Buy and What to Expect
Comparing your purchases will help you see price differences and even warranty details prior to making a buying decision. The number of retailers carrying mobile home exterior doors 32×74 inswing can be different, along with how quickly they can deliver the product.
Shopping Retailers Like Home Depot, Lowe’s, and Home Outlet
Both of the above companies have a wide array of mobile home exterior door 32 x 74 inswing options available that usually provide specific features such as the insulating core and prehung door frame. Home Outlet and other parts vendors tend to have manufactured homes exterior doors available.
Pricing, Availability, and Delivery Considerations
“Some products deliver across the country, while others only deliver within a certain radius from their brick-and-mortar stores. It will save time by verifying your product’s availability beforehand because some designs tend to run out fast during remodeling season. Making a phone call in advance about your online order will also speed up the process when picking it up in-store.”
Conclusion
Installing 32×74 inch swing exterior doors on mobile homes is not as difficult as it might seem once you know how to measure rough opening, understand the jamb thickness, and the type of hinge used. Take your time in measurements, consider reputable brands such as Therma-Tru and Masonite, and do not overlook sealing and shimming when installing them. Once installed properly, you will enjoy your entry door for years to come.
Frequently Asked Questions
What is the correct rough opening required for 32×74 inswing mobile home exterior doors?
The average requirement for a rough opening is about 32-1/2 inch width and 76-1/2 inch height. Make sure to measure the size of your current frame before ordering a new one.
How can I tell whether I need left-hand or right-hand inswing?
Facing the door from the outside and observing that the hinges are on the right, you need the right-hand inswing. If not, then you will require a left-hand door.
What material is more durable when choosing mobile home entry doors?
Both fiberglass and steel have proven to be more durable than solid wood due to low maintenance and resistance to adverse conditions. Fiberglass is especially durable in humid areas.
Are all types of storm doors compatible with 32×74 inswing?
No, storm doors are produced by different manufacturers and may be not interchangeable. Choose a storm door based on the producer of your main door.
